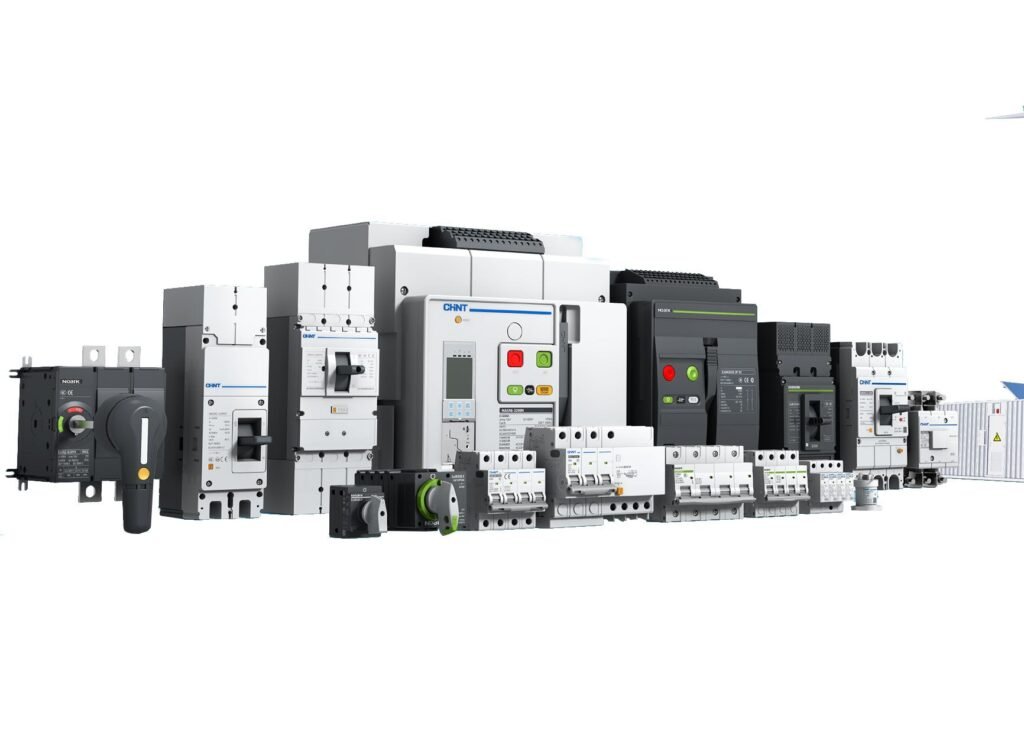

Low Voltage Electrical Equipment

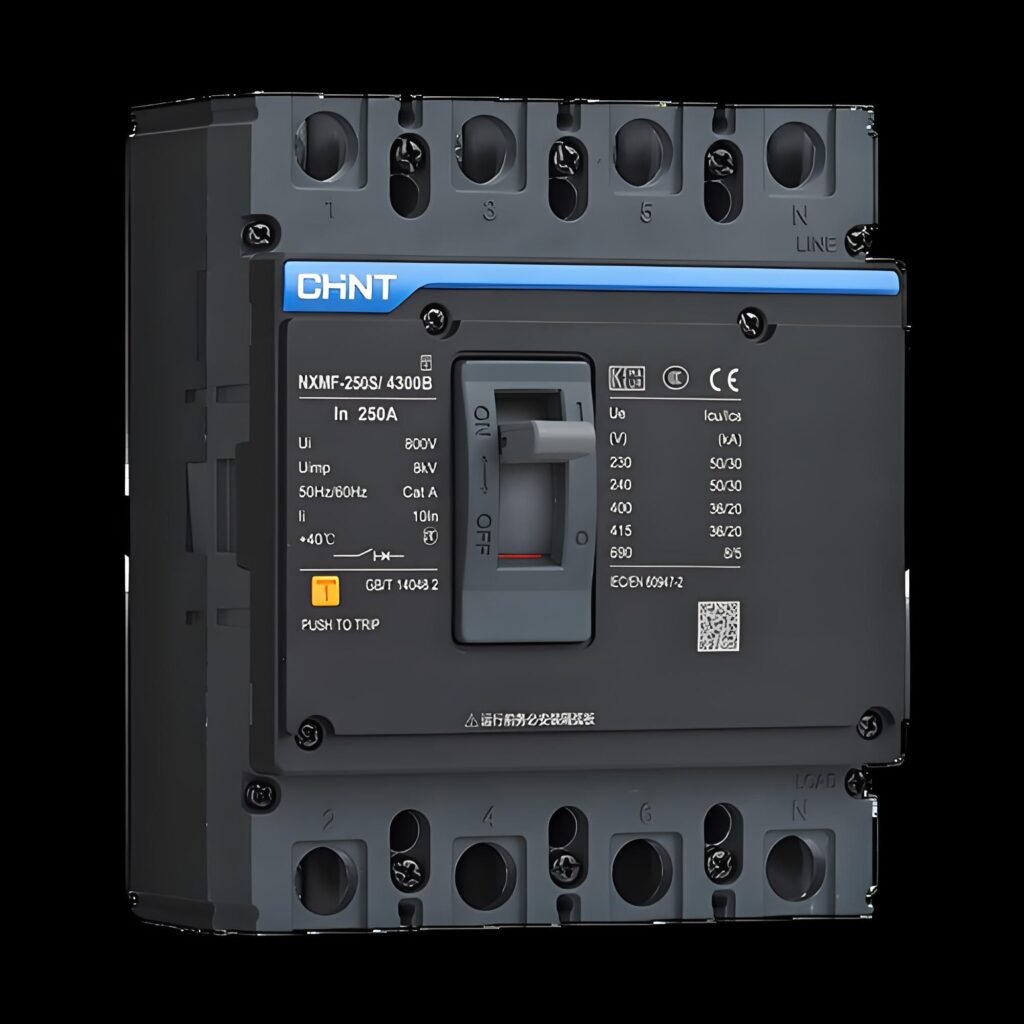

Molded-Case Circuit Breakers (MCCBs)
Engineering-plastic solutions for a broad range of MCCB components.
Recommended materials: PA6 and PA66.
Housings: A90G25, A90G30, H90GV30, A50G25 and A50G30; all colors available.
Shunt-trip device: J60X1V30; all colors available.
Low Voltage Electrical Equipment

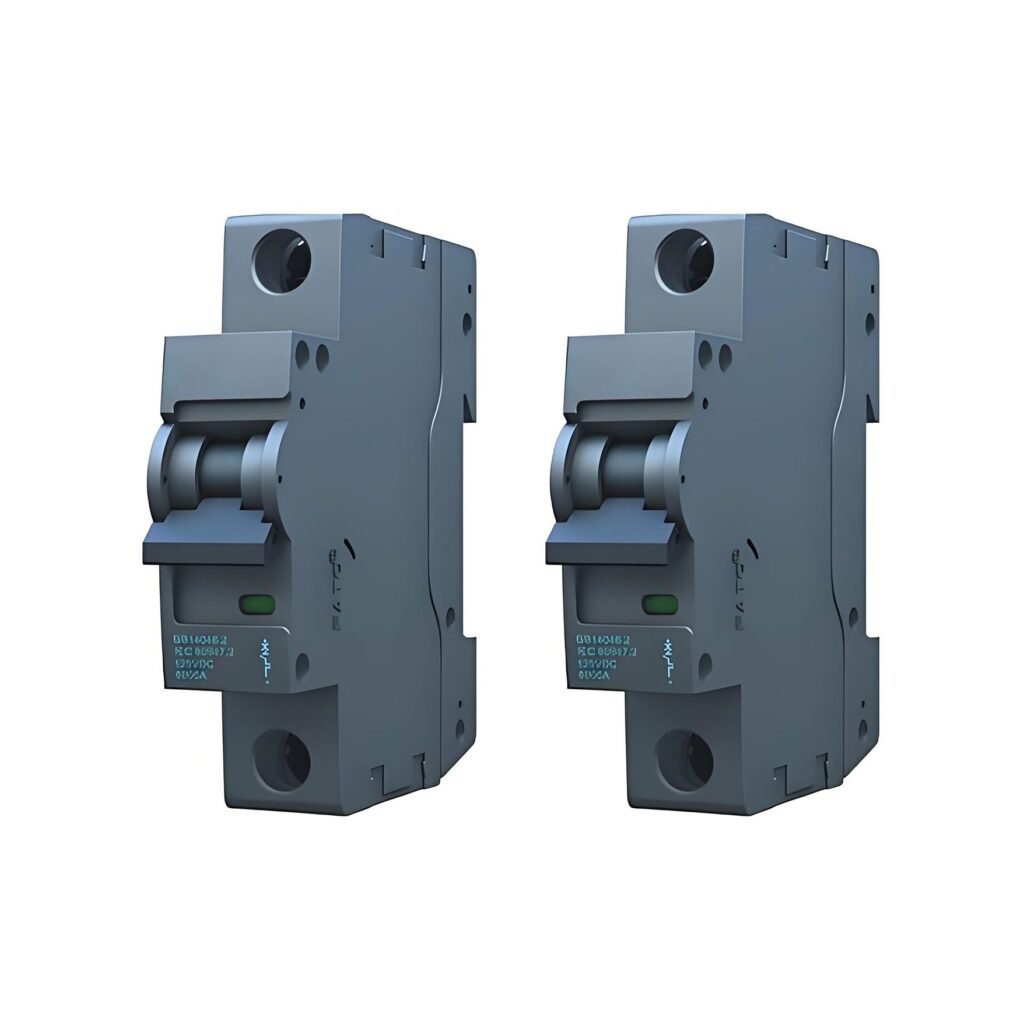

Materials for Low-to-Medium Arc-Resistance Requirements
BR2G26WH: glass-fiber-reinforced, nitrogen-based flame-retardant PA6 with a balance of stiffness and toughness for medium arc-resistance requirements.
Low Voltage Electrical Equipment

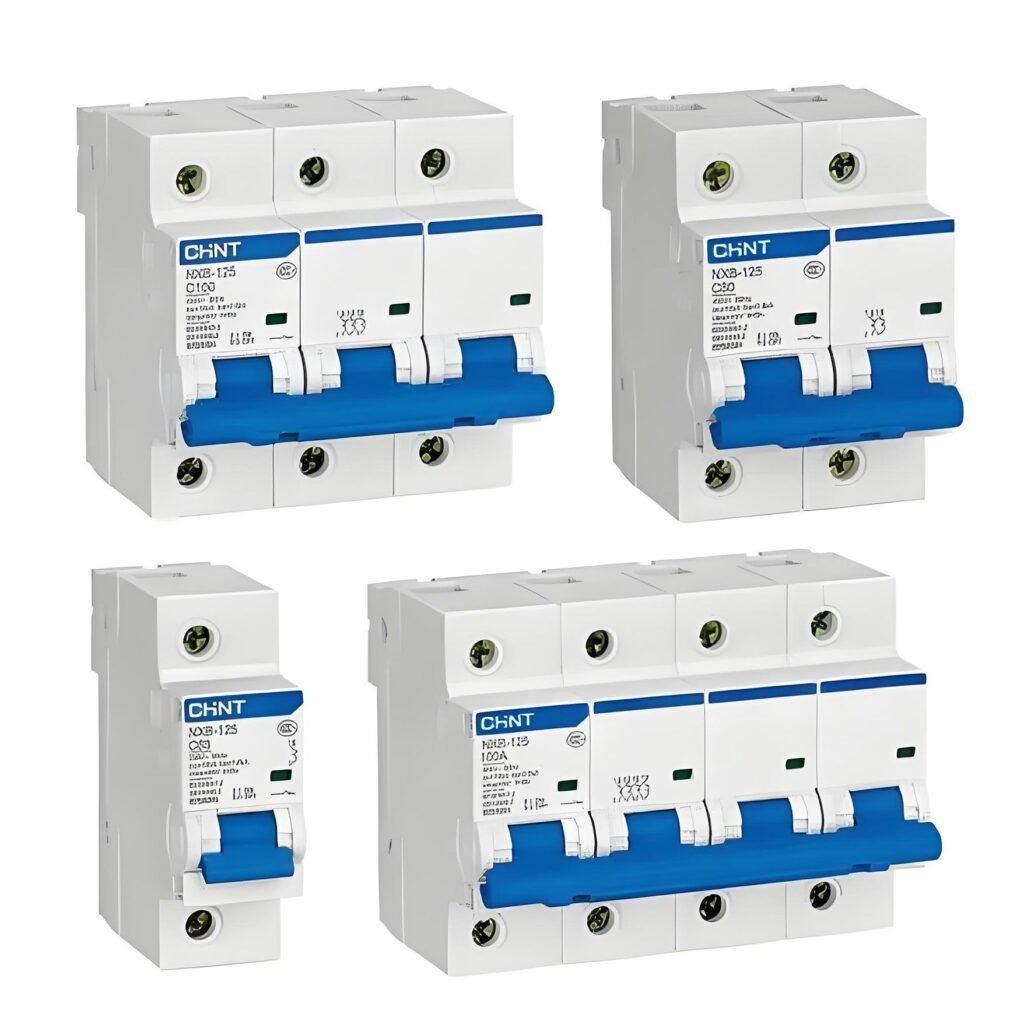

High-Current Miniature Circuit Breakers
H90G30: high-temperature PPA with an organophosphorus flame-retardant system and 30% glass fiber.
A90G30NC/BK: PA66 with an organophosphorus flame-retardant system and 30% glass fiber.
Key requirements: heat resistance, stiffness and GWFI 960°C.
Benefits: dimensional stability and halogen-free formulation.
Low Voltage Electrical Equipment

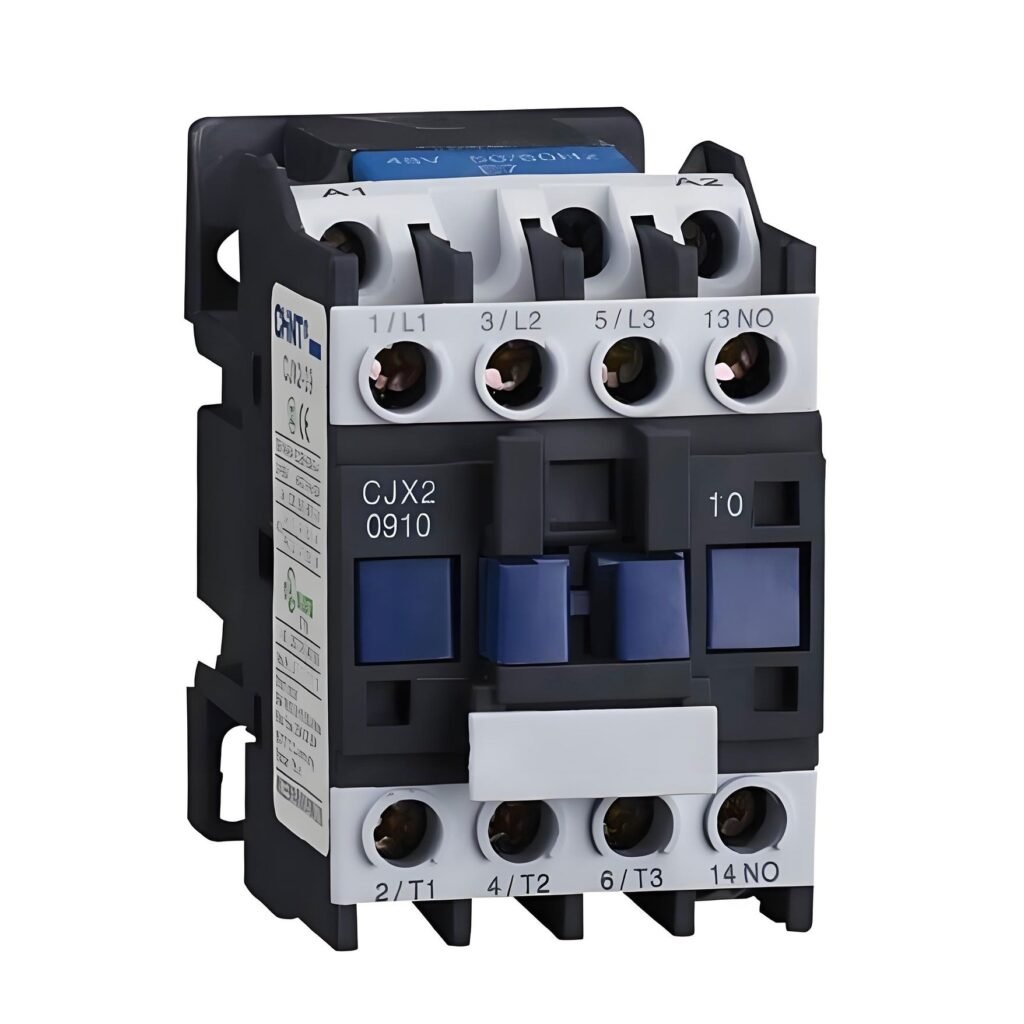

Arc Chutes and Bases
Recommended grade: A90G30NC/BK.
Key requirements: heat resistance, stiffness, impact performance and injection moldability.
Benefits: flame retardancy, low extractables and low corrosion potential.
Arc-chute grades: H90G30NC/BK and A90G25NC/BK.
Additional benefits: flame retardancy and halogen-free formulation.
Low Voltage Electrical Equipment

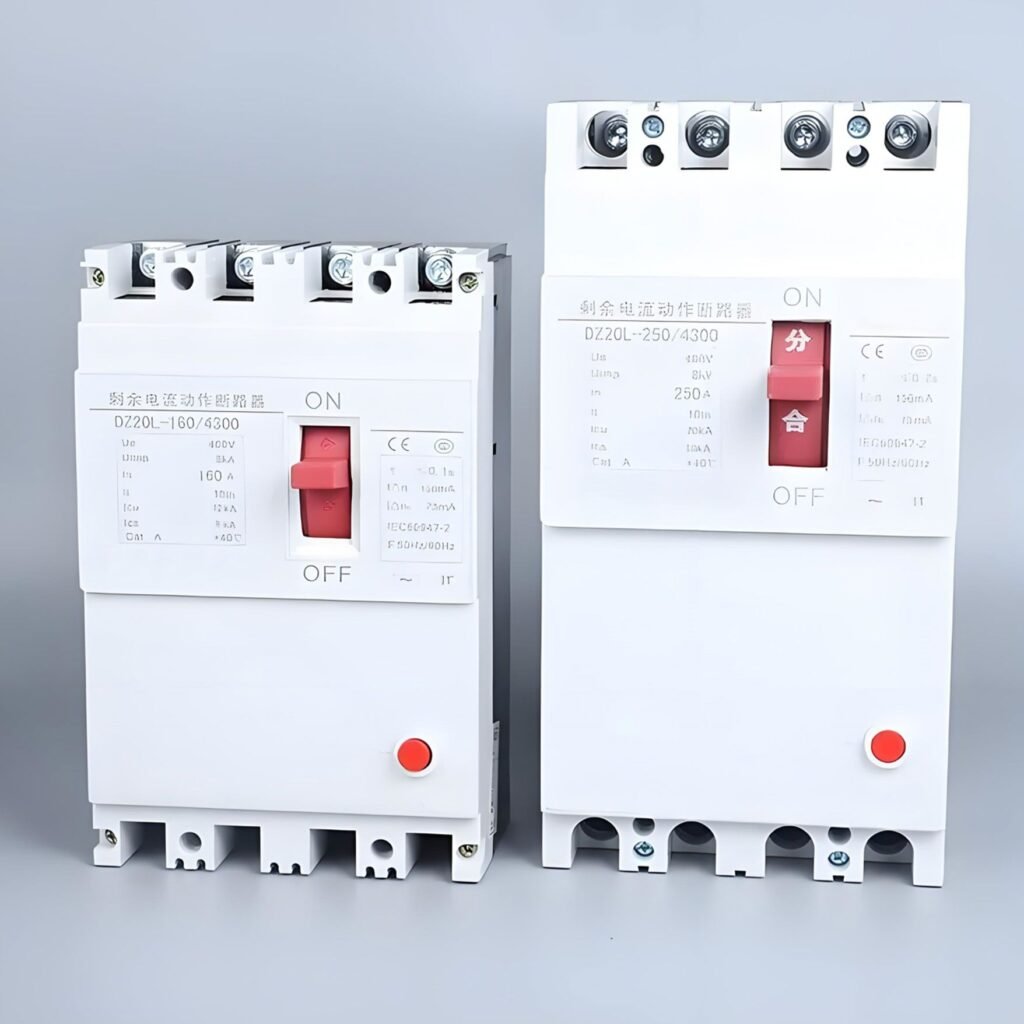

Industrial Control Housings
H90G30: high-temperature PPA with an organophosphorus flame-retardant system and 30% glass fiber; RTI 150°C.
A90G30NC/BK: PA66 with an organophosphorus flame-retardant system and 30% glass fiber.
Key requirements: heat resistance, stiffness, GWFI 960°C, UL 94 V-0, HWI classification above 2 and laser marking.
Benefits: flame retardancy and good injection moldability.
Low Voltage Electrical Equipment

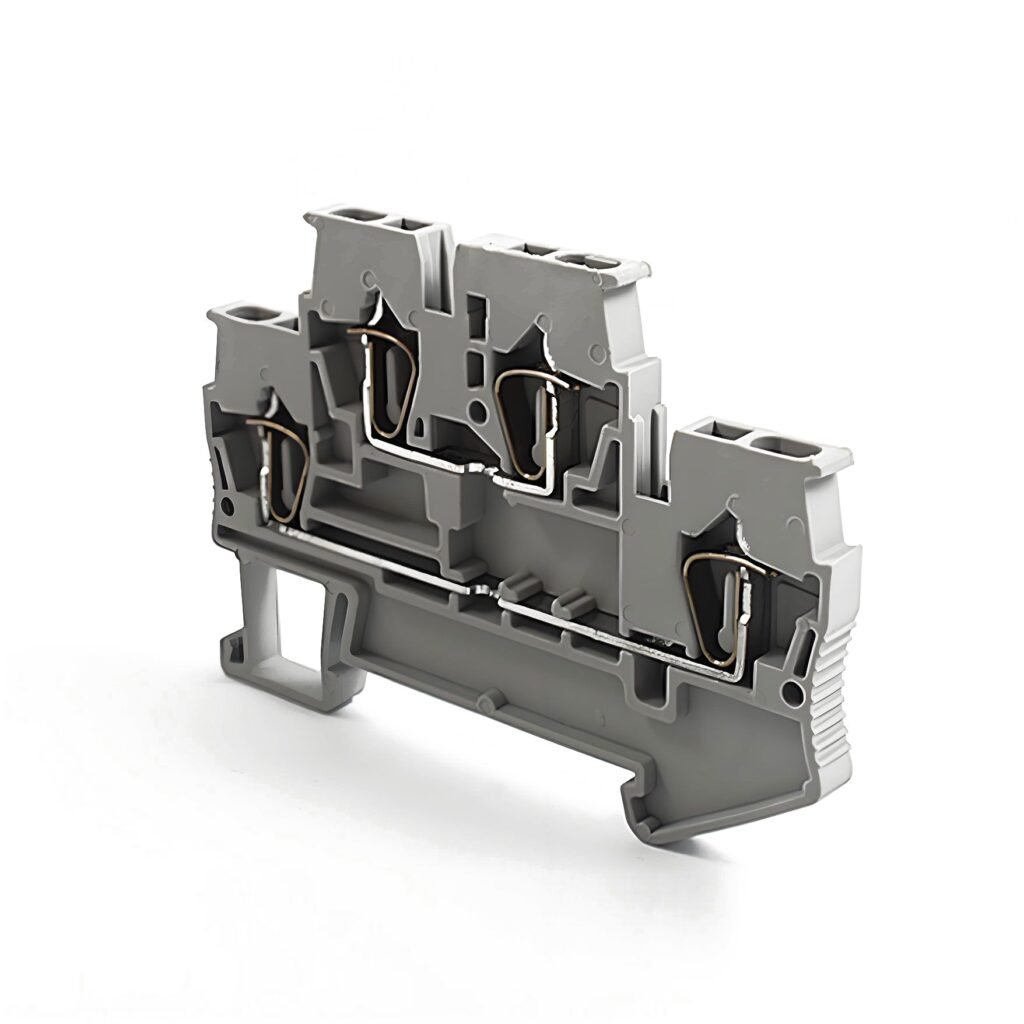

Terminal Blocks
A80, all colors available: unfilled, halogen-free flame-retardant PA66.
C80, all colors available: unfilled, halogen-free flame-retardant PA66/PA6.
Key requirements: high flow, flexibility, UL 94 V-0 at 0.4 mm in all colors, and controlled flame and smoke performance.
Benefits: short molding cycles and support for up to 50% regrind, subject to validation.
Low Voltage Electrical Equipment

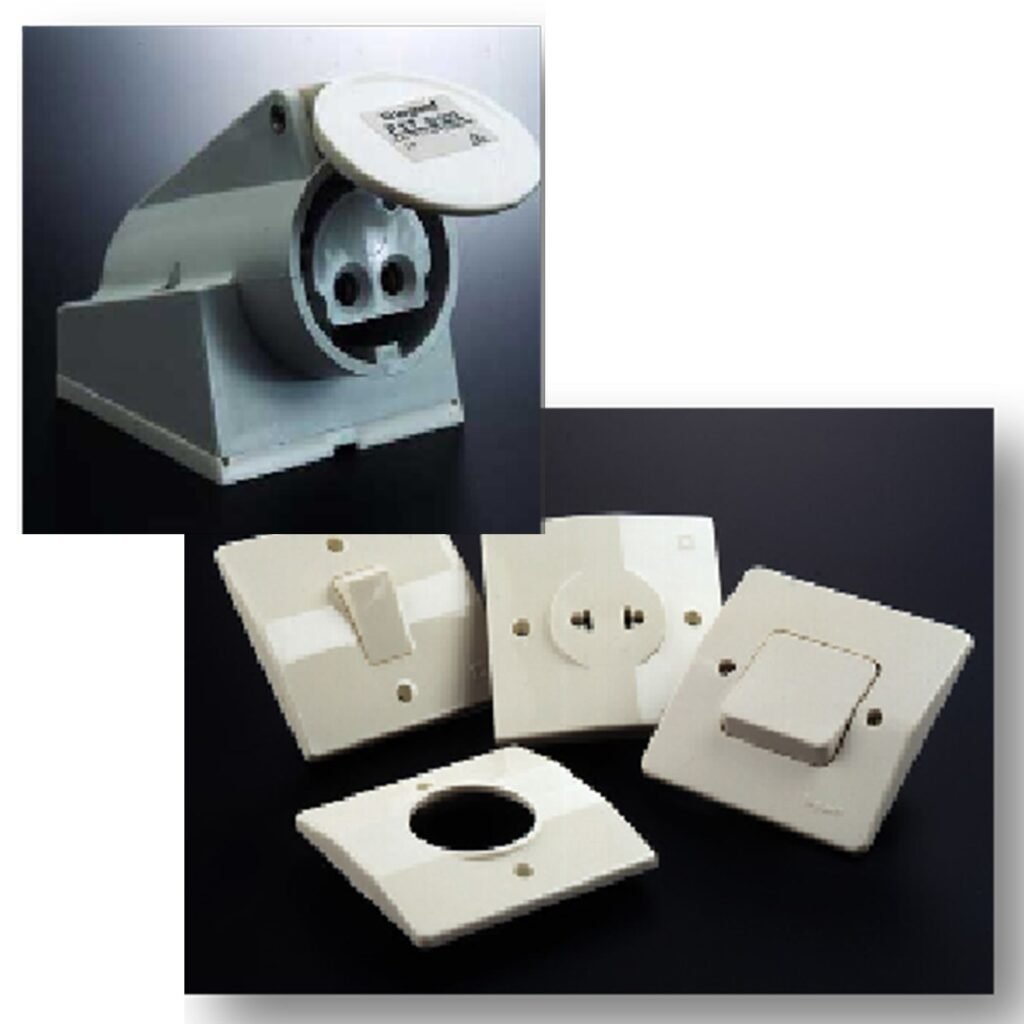

Switches and Plugs
Recommended grades: A2NC, B2NC and C80NC.
Key requirements: high flow, stiffness and GWFI 850°C.
Benefits: good surface appearance and injection moldability.
Low Voltage Electrical Equipment
Coil Bobbins and Supports
Recommended grades: A20G30NC/BK.
Key requirements: heat resistance, stiffness and electrical performance.
Benefits: flame retardancy and halogen-free formulation.
Low Voltage Electrical Equipment

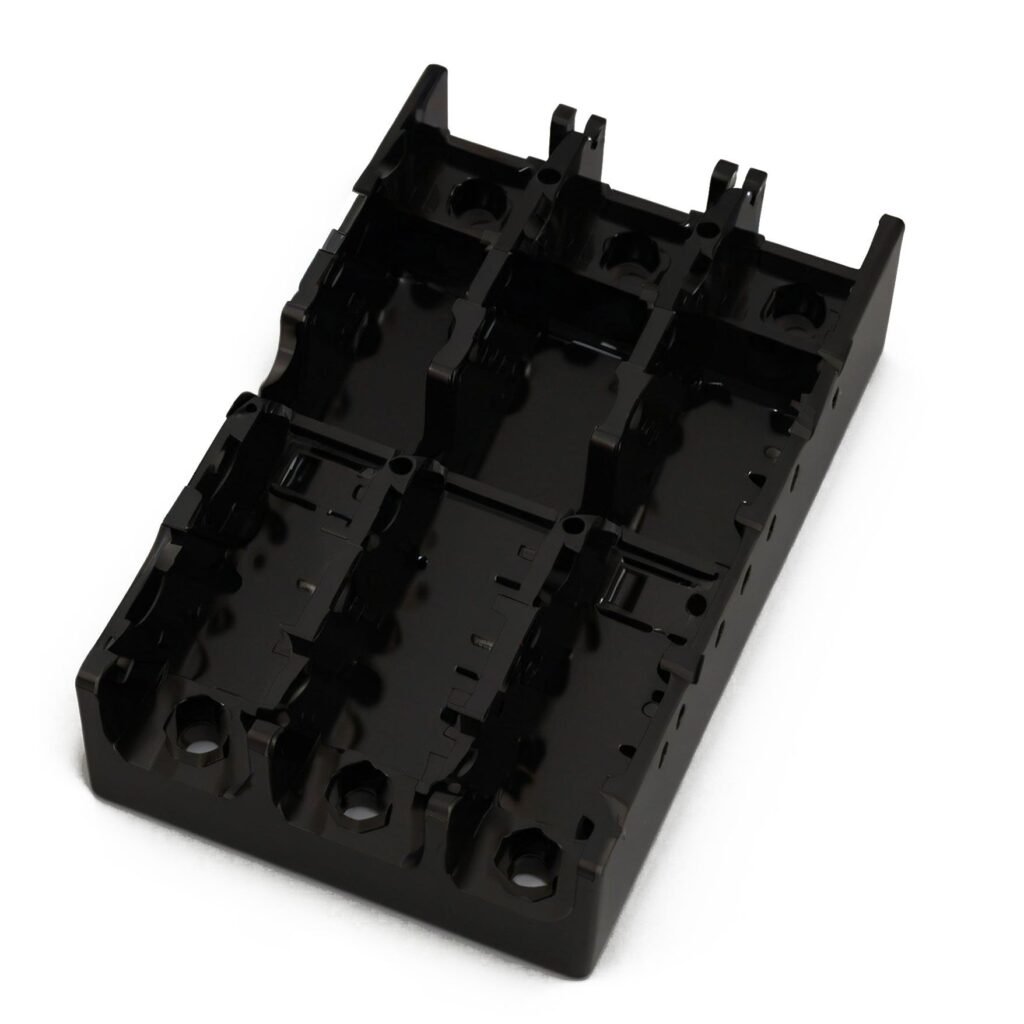

Circuit Breaker Bases
Adjustable glass-fiber content: 10-50%.
Excellent creep resistance and RTI above 150°C.
Heat deflection temperature up to 270°C, high flow and shorter molding cycles.
Suitable for 270°C reflow soldering; stable UL 94 V-0 performance at 0.8 mm.
Stable glow-wire performance without flaming.
CTI range: 250-350 V.
Designed to support UL 746C and IEC 60695 requirements.
Recommended grade range: H50G10-50; all colors available.
Low Voltage Electrical Equipment

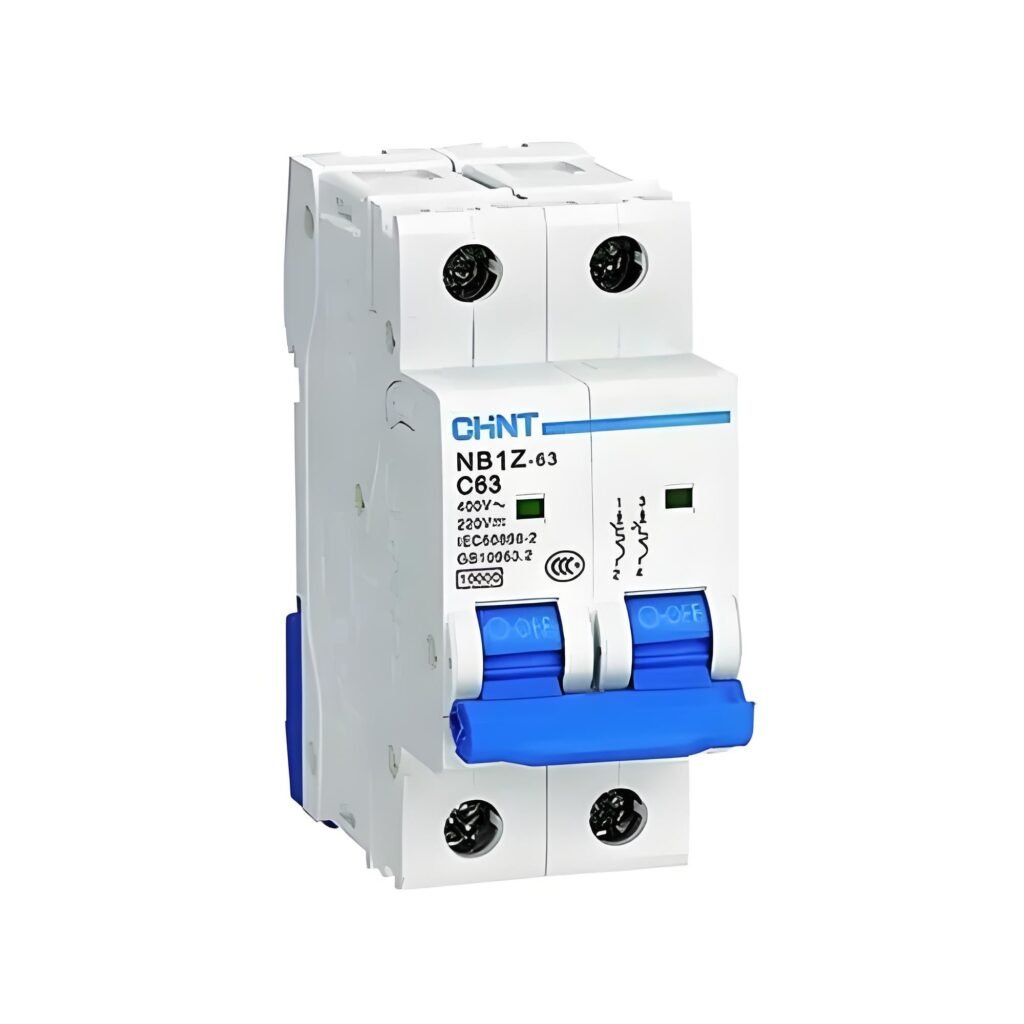

MCB Internal Structural Components
Adjustable glass-fiber content: 10-50%.
Excellent creep resistance and RTI above 150°C.
Heat deflection temperature up to 270°C, high flow and shorter molding cycles.
Suitable for 270°C reflow soldering; stable UL 94 V-0 performance at 0.8 mm.
Stable glow-wire performance without flaming.
CTI range: 250-350 V.
Designed to support UL 746C and IEC 60695 requirements.
Recommended grade range: H50G10-50; all colors available.
Low Voltage Electrical Equipment

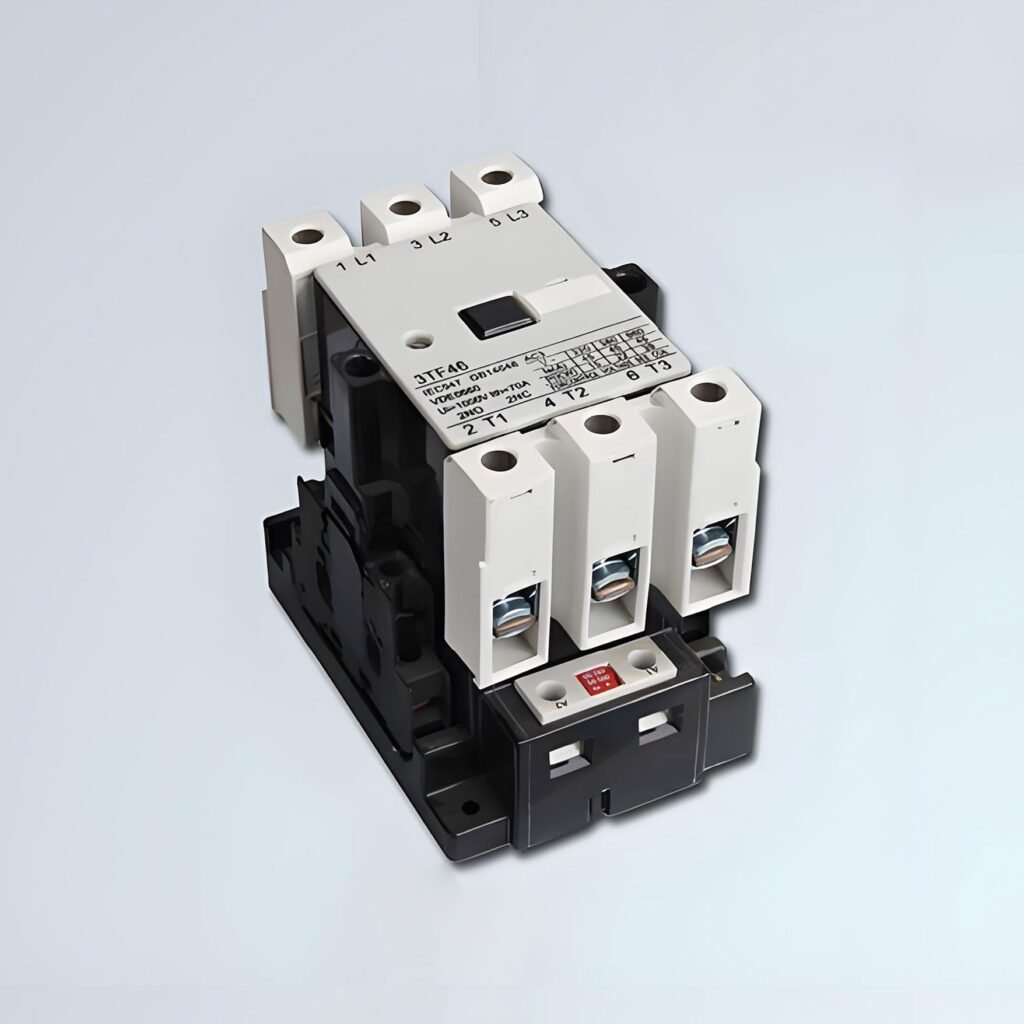

Magnetic Contactors
Recommended grades: H90G30NC/BK and A90G25NC/BK.
Key requirements: heat resistance and stiffness.
Benefits: flame retardancy, halogen-free formulation and broad color availability.
Low Voltage Electrical Equipment

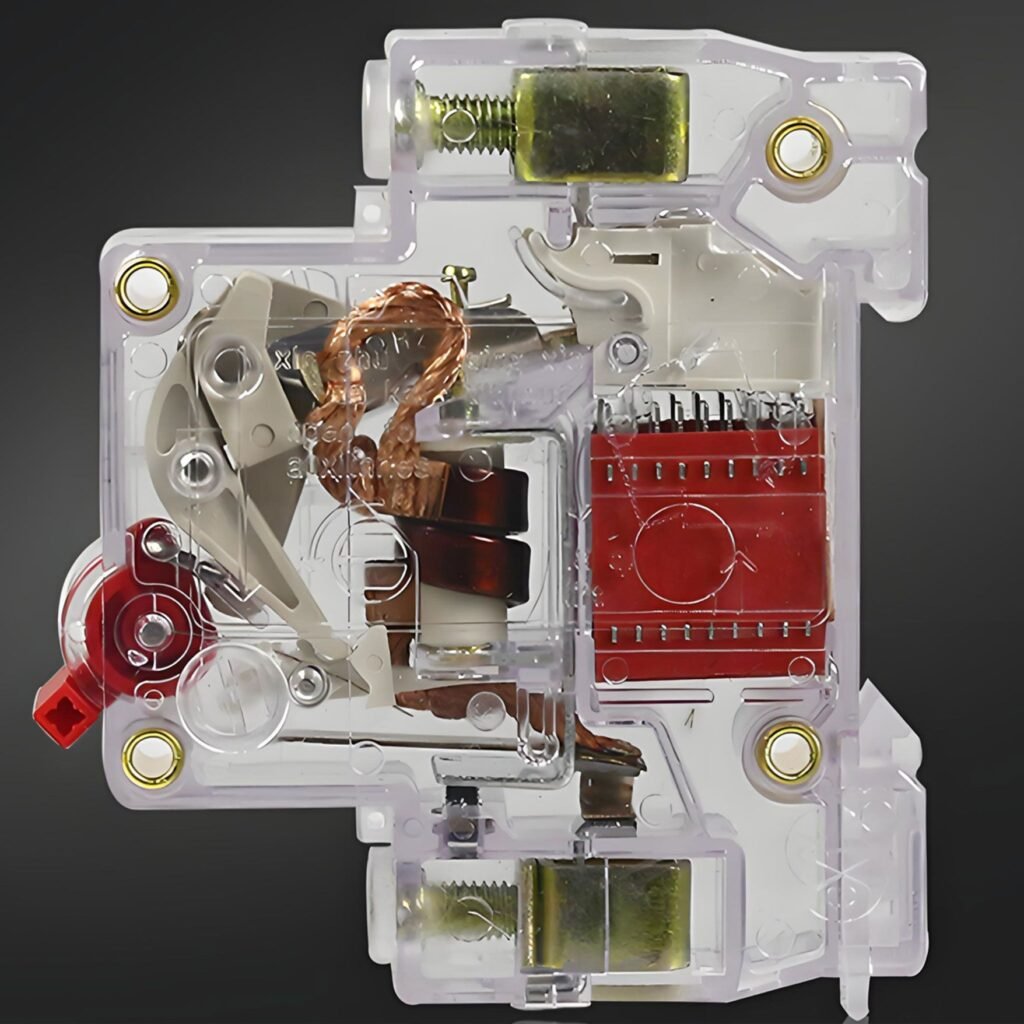

Materials for Medium-to-High Arc-Resistance Requirements
B90G30: glass-fiber-reinforced PA6 with an organophosphorus flame-retardant system, optimized for electrical performance and injection molding.
A90G25/30: glass-fiber-reinforced PA66 with an organophosphorus flame-retardant system, heat resistance and reduced moisture uptake.
H90G30: high-temperature, glass-fiber-reinforced polyamide with an organophosphorus flame-retardant system, heat resistance and reduced moisture uptake.
Low Voltage Electrical Equipment

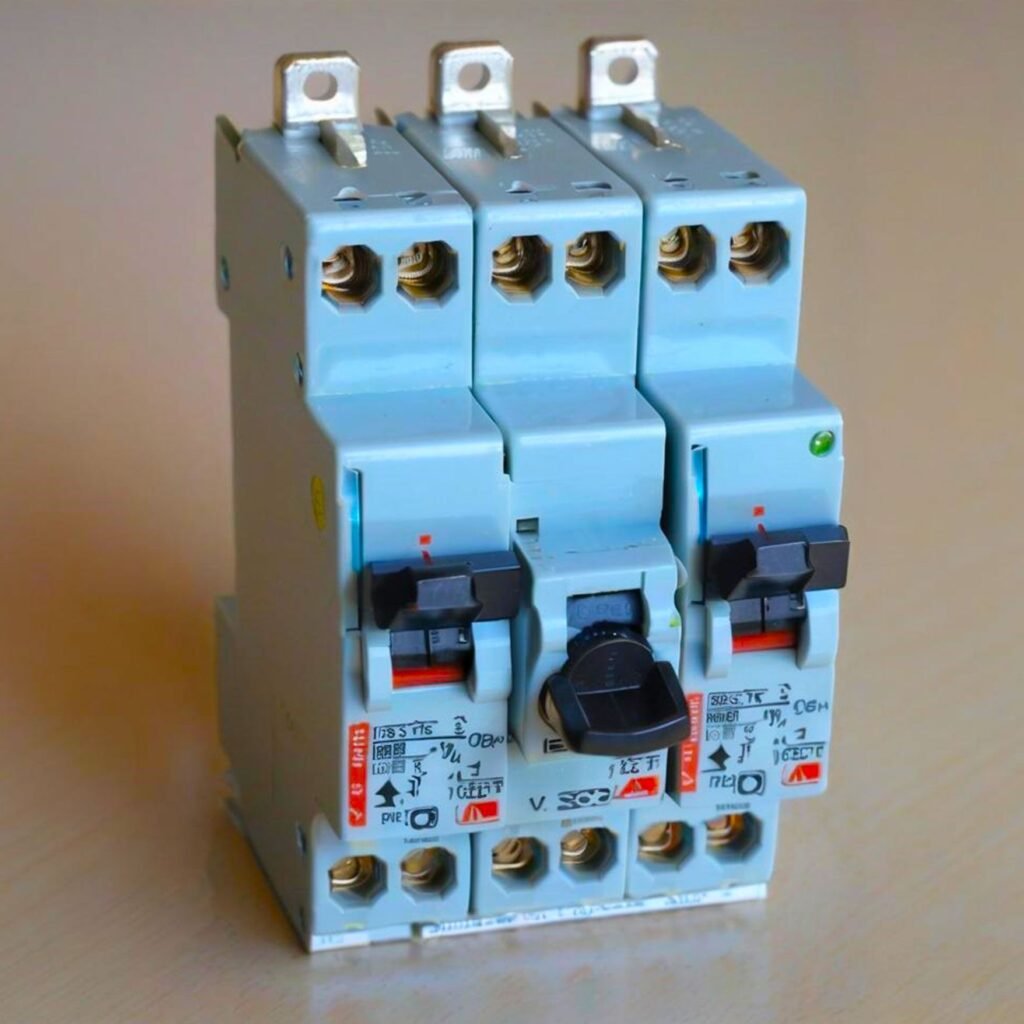

Low-Current Miniature Circuit Breakers
BR2G26WH: halogen-free flame-retardant PA6 with 30% glass fiber.
Key requirements: heat resistance, injection moldability and GWFI 960°C.
Benefits: arc resistance and low extractables.
Low Voltage Electrical Equipment

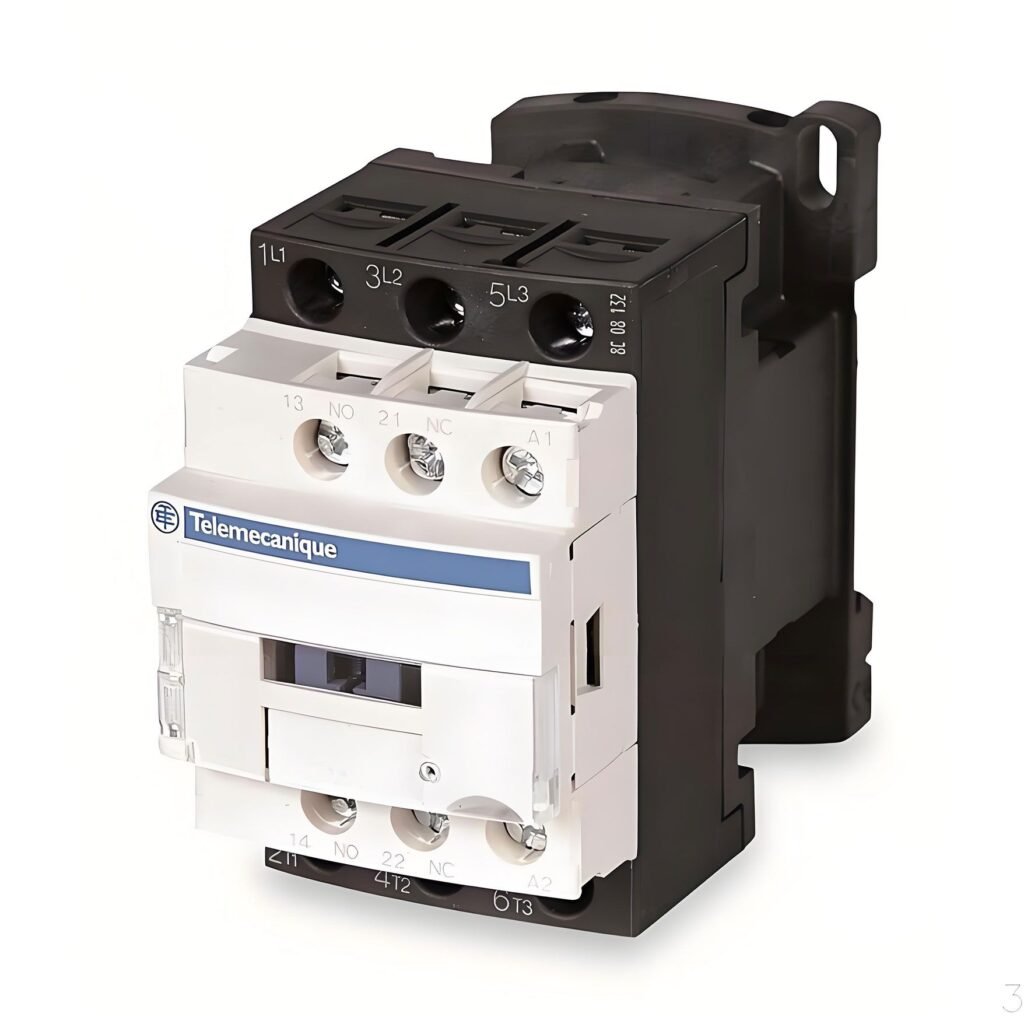

MCCB Housings and Structural Parts
Material: glass-fiber-reinforced, brominated flame-retardant PPA.
Adjustable glass-fiber content: 10-50%.
Excellent creep resistance and RTI above 150°C.
Heat deflection temperature up to 270°C, high flow and shorter molding cycles.
Suitable for 270°C reflow soldering; stable UL 94 V-0 performance at 0.8 mm.
Stable glow-wire performance without flaming.
CTI range: 250-350 V.
Designed to support UL 746C and IEC 60695 requirements.
Recommended grade range: H50G10-50; all colors available.
Low Voltage Electrical Equipment

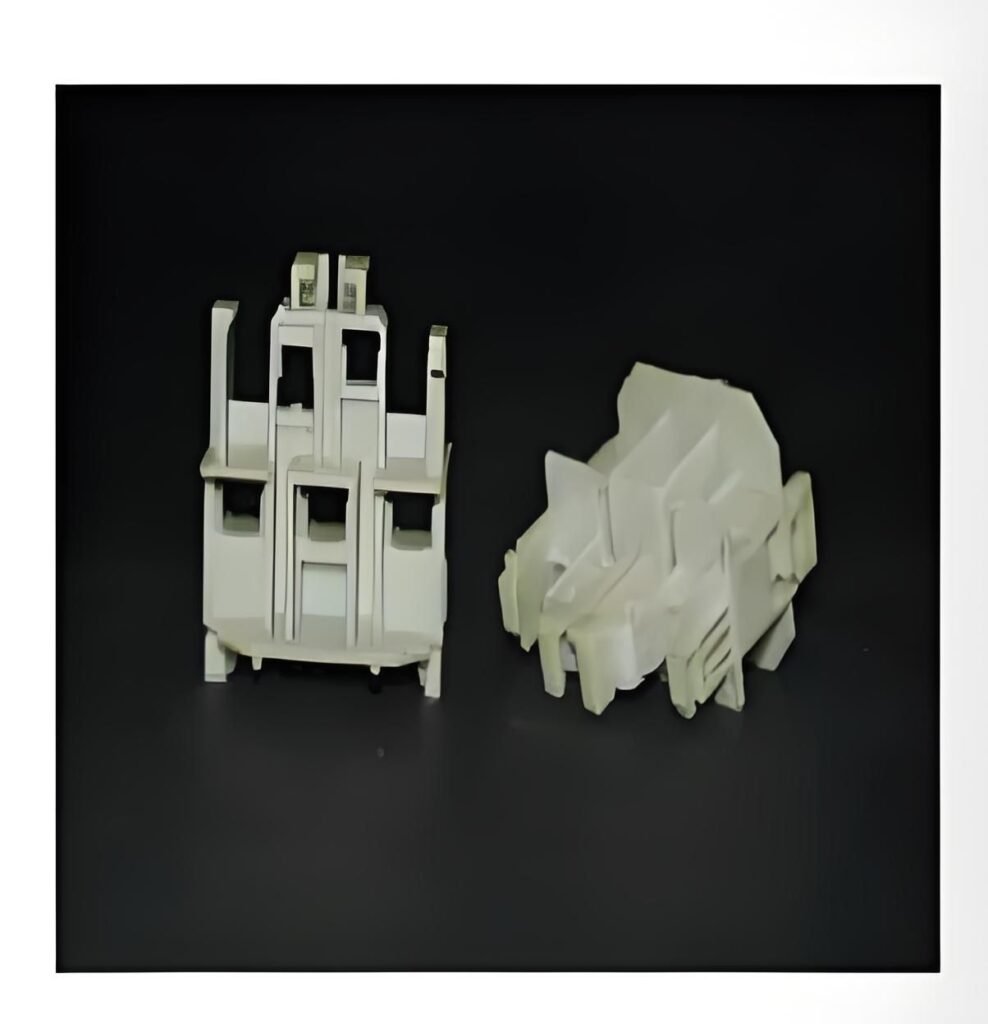

Moving Contact Carriers
Thermoplastic alternative to selected thermoset materials.
Adjustable glass-fiber content: 10-50%.
Custom colors and laser-marking capability; RTI above 150°C.
Heat deflection temperature up to 270°C, high flow and shorter molding cycles.
Suitable for 270°C reflow soldering; stable UL 94 V-0 performance at 0.8 mm.
Halogen- and red-phosphorus-free; designed for WEEE and RoHS compliance.
Designed to support UL 746C and IEC 60695 requirements.
High CTI range: 550-600 V and strong arc resistance.
Recommended grade range: H90G10-50; all colors available.
