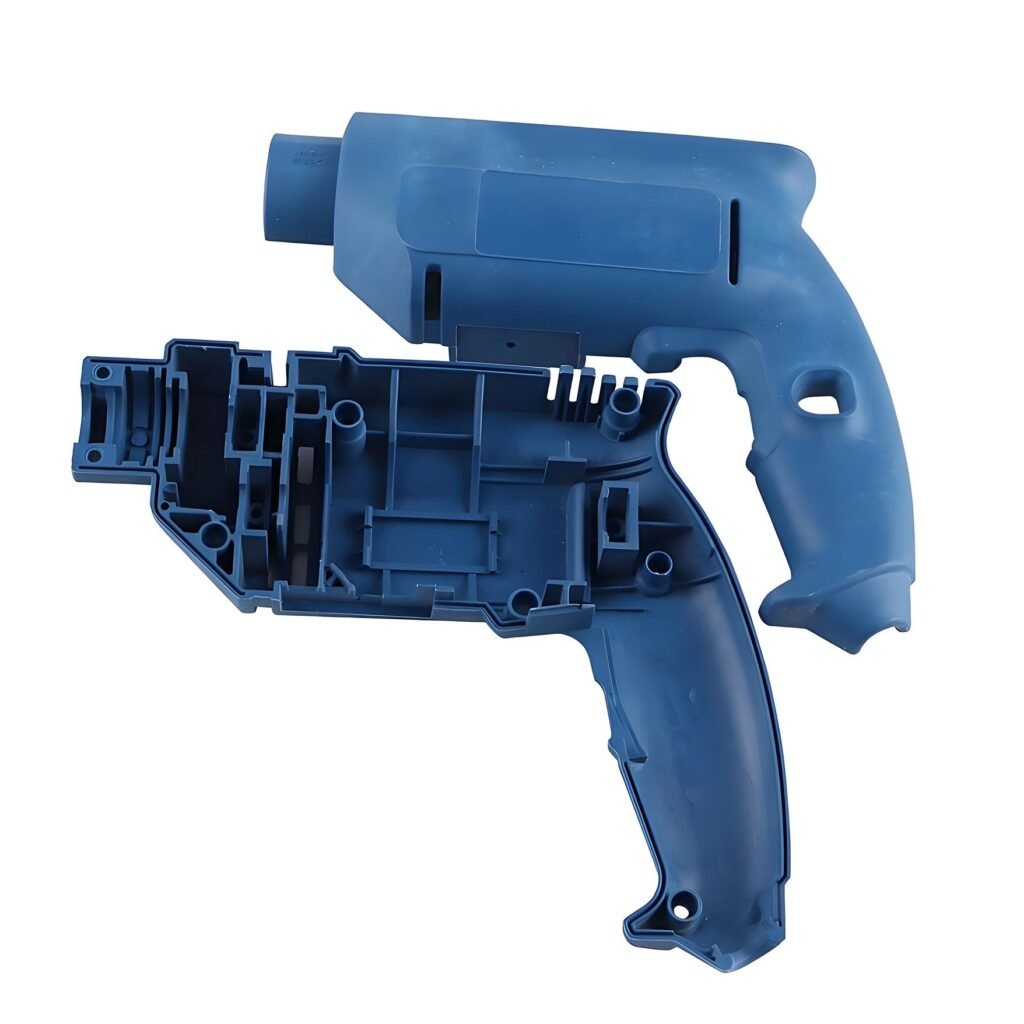

Power Tools
Electrical and Electronic Components

Power Tools

Material: PA6.

Adjustable glass-fiber content: 10-60% in the B2G15-60 range.

Good weatherability, color stability and low-temperature performance.

High hardness and stiffness, wear resistance, fatigue resistance and dimensional stability.

Injection-molding grade: B2BK.

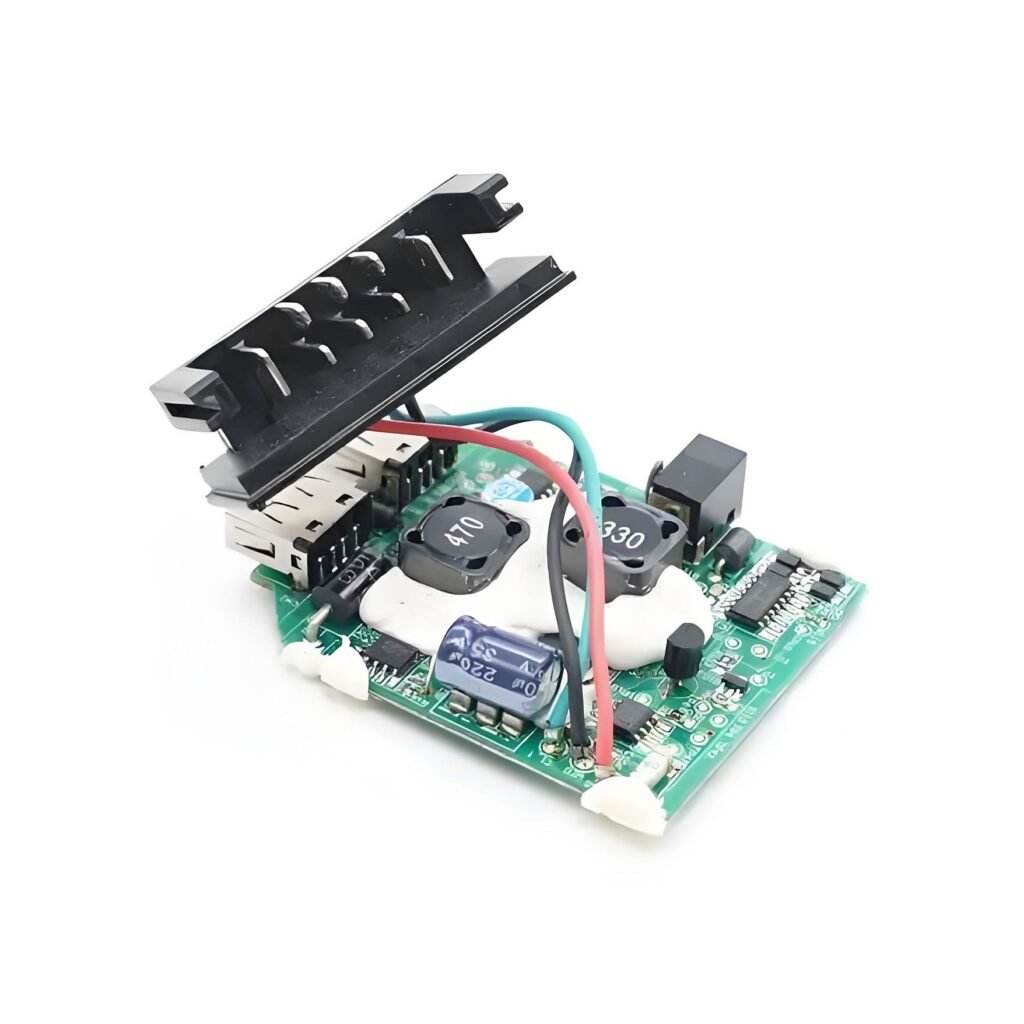

Coil Bobbins
Electrical and Electronic Components

Coil Bobbins

A60G25NC/BK and AT60G25NC/BK: red-phosphorus flame-retardant PA66 with 25% glass fiber.

Key requirements: heat resistance, stiffness, UL 94 V-0 and UL 1446 Class B.

Benefits: electrical insulation and low phosphine emissions.

Timers
Electrical and Electronic Components

Timers

A90GV30NC/BK: halogen-free flame-retardant PA66 with 30% glass fiber.

Key requirements: heat resistance, stiffness and UL 94 V-0.

Glow-wire ignition temperature: GWIT 800°C.

Benefits: heat resistance, dimensional stability and halogen-free formulation.

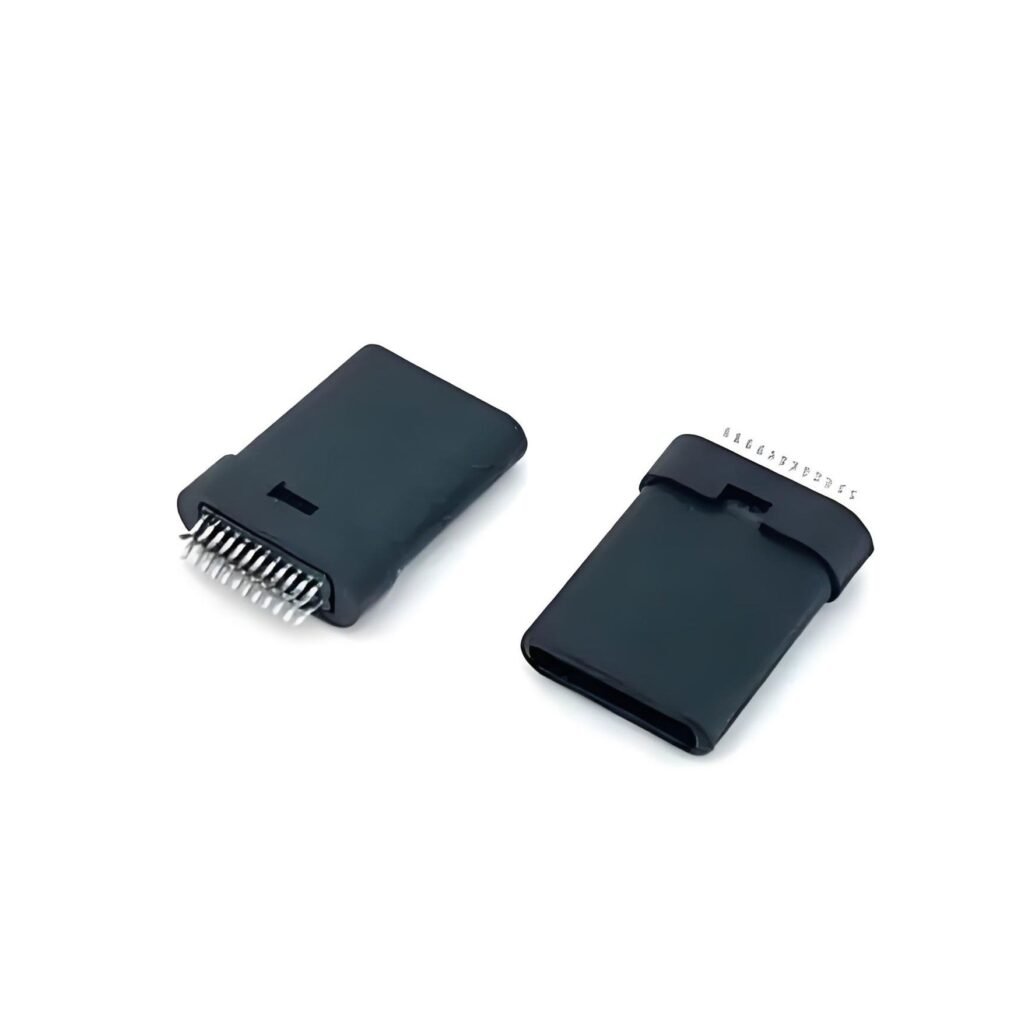

USB Type-C Connector Housings
Electrical and Electronic Components

USB Type-C Connector Housings

Material: glass-fiber-reinforced, brominated flame-retardant PPA.

Adjustable glass-fiber content: 10-50%.

Excellent creep resistance and RTI above 150°C.

Heat deflection temperature up to 270°C, high flow and shorter molding cycles.

Suitable for 270°C reflow soldering; stable UL 94 V-0 performance at 0.8 mm.

Stable glow-wire performance without flaming.

CTI range: 250-350 V.

Designed to support UL 746C and IEC 60695 requirements.

Recommended grade range: H50G10-50; all colors available.

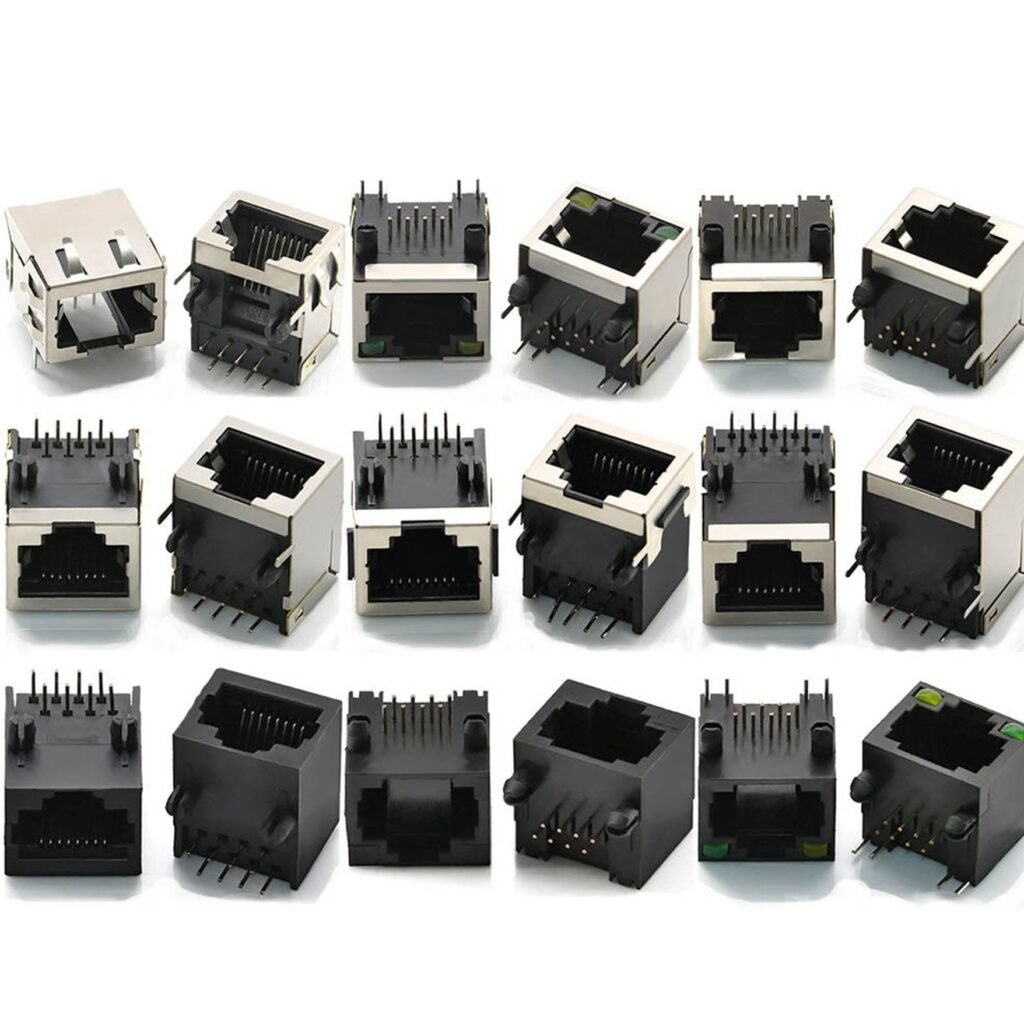

RJ45 Connectors
Electrical and Electronic Components

RJ45 Connectors

Material: glass-fiber-reinforced, halogen-free flame-retardant PPA.

Adjustable glass-fiber content: 10-50%.

Custom colors and laser-marking capability; RTI above 150°C.

Heat deflection temperature up to 270°C, high flow and shorter molding cycles.

Suitable for 270°C reflow soldering; stable UL 94 V-0 performance at 0.8 mm.

Halogen- and red-phosphorus-free; designed for WEEE and RoHS compliance.

Designed to support UL 746C and IEC 60695 requirements.

High CTI range: 550-600 V and strong arc resistance.

Recommended grade range: H90G10-50; all colors available.

USB 3.0 Type-A Receptacle Housings
Electrical and Electronic Components

USB 3.0 Type-A Receptacle Housings

Material: glass-fiber-reinforced, halogen-free flame-retardant PPA.

Adjustable glass-fiber content: 10-50%.

Custom colors and laser-marking capability; RTI above 150°C.

Heat deflection temperature up to 270°C, high flow and shorter molding cycles.

Suitable for 270°C reflow soldering; stable UL 94 V-0 performance at 0.8 mm.

Halogen- and red-phosphorus-free; designed for WEEE and RoHS compliance.

Designed to support UL 746C and IEC 60695 requirements.

High CTI range: 550-600 V and strong arc resistance.

Recommended grade range: H90G10-50; all colors available.

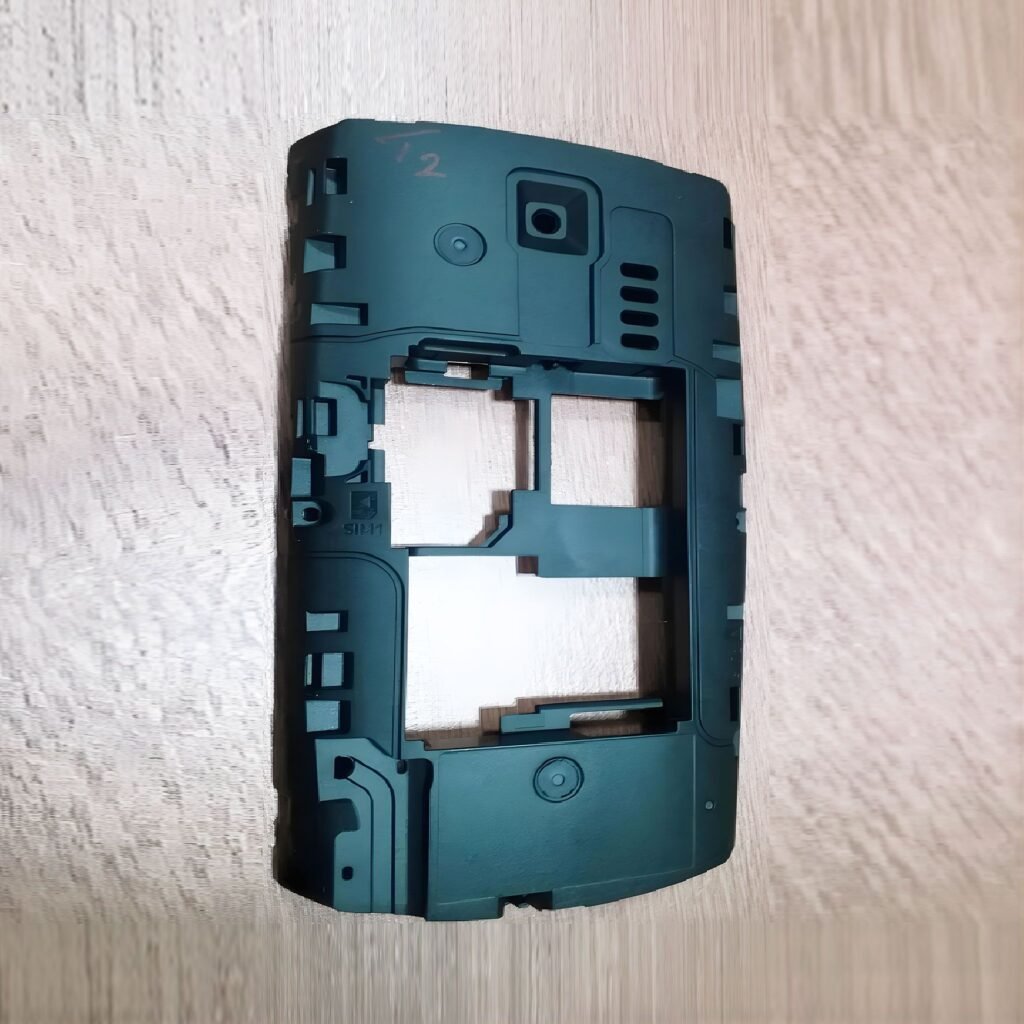

Mobile Device Frames
Electrical and Electronic Components

Mobile Device Frames

Material: glass-fiber-reinforced PPA.

Glass-fiber content: 30-60%.

Excellent creep resistance and long-term use temperature above 150°C.

Heat deflection temperature up to 270°C, high flow and shorter molding cycles.

High hardness and stiffness, wear and fatigue resistance, low water absorption and strong dimensional stability.

Recommended grade range: H2G10-50; all colors available.

Photos show typical applications for these compounds; they are not products we manufacture. Grades named here are examples - the final grade is confirmed after an enquiry against the part and its requirements.

Grades used on this page B2G15-60 B2BK A60G25NC/BK AT60G25NC/BK A90GV30NC/BK H50G10-50 H90G10-50 H2G10-50

Send us your part requirements

Tell us the part, the material or grade you use today and the annual volume. An engineer replies with a recommended grade and a quotation.
