BR2G26WH

BR2G26WH PA6, glass-fiber reinforced, halogen-free flame retardant, white

Grade BR2G26WH

UL 94 V-2

GWFI 960 °C

CTI 400 V

BR2G26WH

PA6, glass-fiber reinforced, halogen-free flame retardant, white

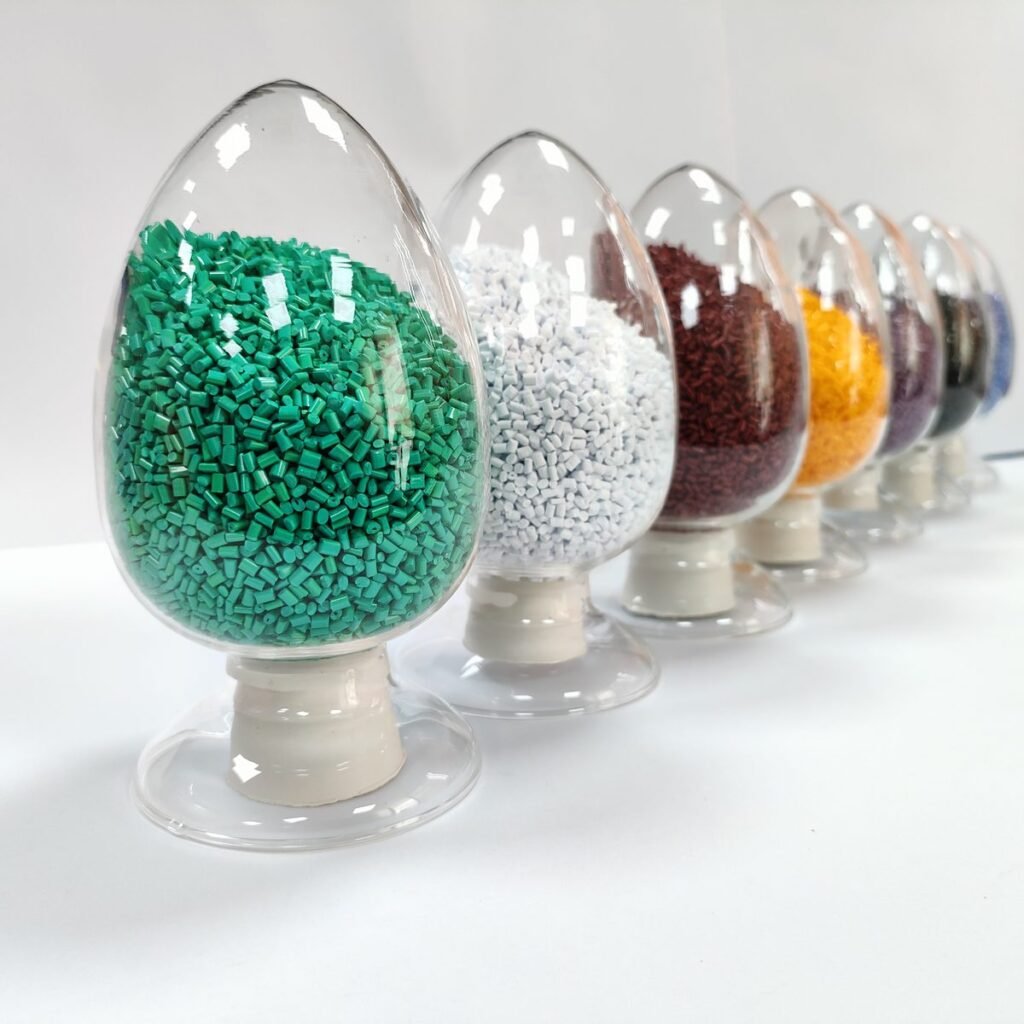

Pellet photos show colour examples only.

Features

Excellent mechanical properties
Excellent flame retardancy
Halogen-free flame retardant
Easy to process and mold

Applications

Injection molding
Electrical appliance housings

Request Datasheet Contact Now

Technical data

Property Test standard Unit Typical value

Density GB/T 1033 g/cm³ 1.4312

Tensile strength GB/T 1040 MPa 81.0

Elongation at break GB/T 1040 % 5.1

Flexural strength GB/T 9341 MPa 125

Flexural modulus GB/T 9341 MPa 5354

Charpy notched impact strength, 23 °C GB/T 1043 kJ/m² -

Charpy unnotched impact strength, 23 °C GB/T 1043 kJ/m² 30.9

Heat deflection temperature, 1.8 MPa GB/T 1634 °C 165

Flammability, 1.6 mm UL94 - V-2

Glow-wire flammability index (injection-molded product) GB/T 5169 °C 960

Comparative tracking index GB/T 4207 V 400

Electric strength GB/T 1408 kV/mm 16

Environmental protection RoHS 2.0 PPM Pass

Ash (glass fiber) GB/T 9345 % 30.0

Colour GB/T 3979 - Pass

Typical values from laboratory averages. Not for specification.

Typical processing conditions

Parameter Setting

Melt temperature 225-280 °C

Mold temperature 60-80 °C

Barrel temperature, rear zone 230-260 °C

Barrel temperature, center zone 240-260 °C

Barrel temperature, front zone 240-280 °C

Injection speed Medium to high

Back pressure 0.3-1.0 MPa

Drying condition 90-120 °C, 2-4 h

Processing temperature limit 300 °C

FAQ

Are you a manufacturer or a trading company?

We are a manufacturer. We run 8 compounding extrusion lines in Nanxun, Huzhou, with about 30,000 metric tons a year.

Which certifications do you hold?

ISO 9001, ISO 14001, ISO 45001 and IATF 16949.

Can you match a colour from my sample?

Yes. We use a Konica Minolta computer colour-matching system, and colour standards are set from customer samples.

How do I get a datasheet?

Use the datasheet request form. The datasheet is sent to you by email.

What are your minimum order quantity and lead time?

Both are confirmed with each quotation and depend on grade, colour and quantity.

Can you provide RoHS, REACH and SDS documents?

Yes, all three are available.

Send us your part requirements

Tell us the part, the material or grade you use today and the annual volume. An engineer replies with a recommended grade and a quotation.
