A90G30NC

A90G30NC PA66, 30% glass fiber, halogen-free flame retardant, natural

Grade A90G30NC

UL 94 V-0

GWFI 960 °C

CTI 600 V

A90G30NC

PA66, 30% glass fiber, halogen-free flame retardant, natural

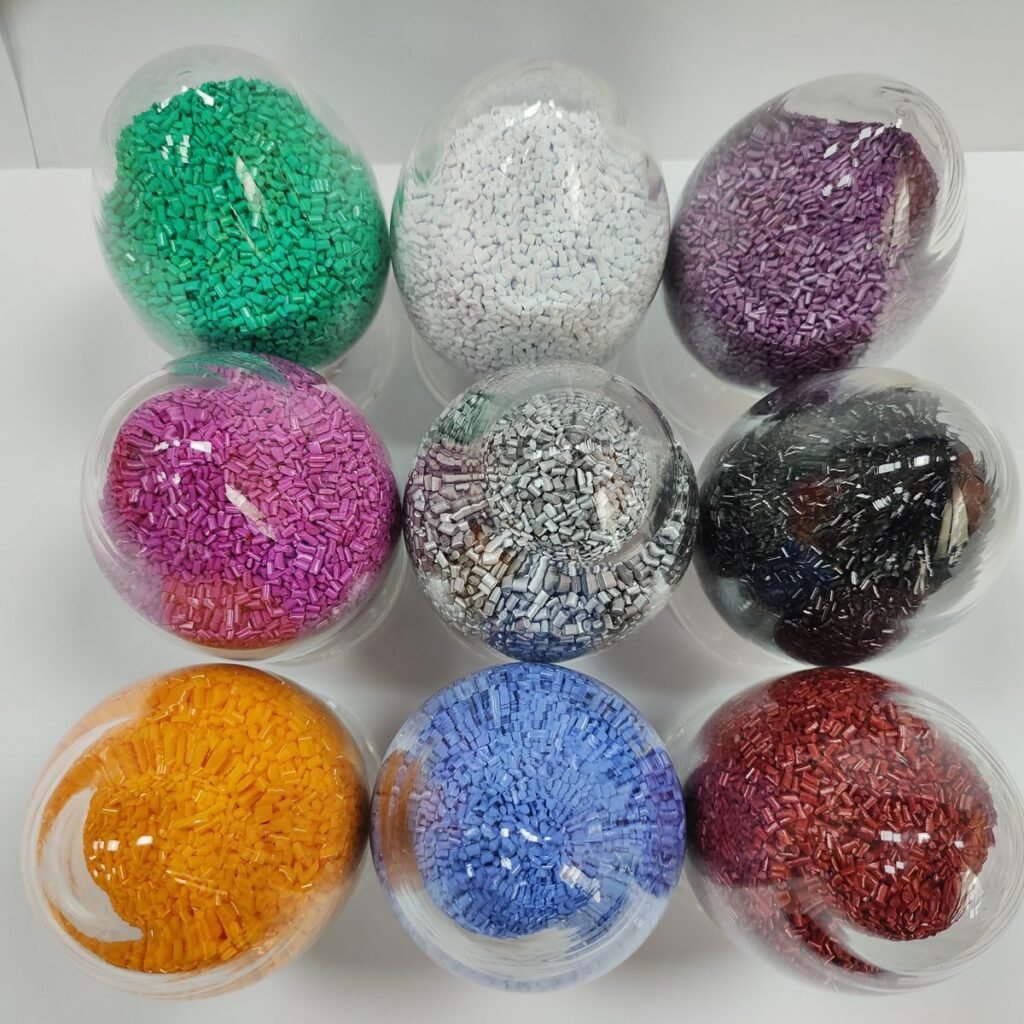

PA66 compound pellets in several colours

Pellet photos show colour examples only.

Features

Excellent mechanical properties
Excellent flame retardancy
Halogen-free flame retardant
Easy to process and mold

Applications

Injection molding
Electrical appliance housings
Electronic connectors

Request Datasheet Contact Now

Technical data

Property Test standard Unit Typical value

Density GB/T 1033 g/cm³ 1.4533

Tensile strength GB/T 1040 MPa 150

Elongation at break GB/T 1040 % 4.6

Flexural strength GB/T 9341 MPa 210

Flexural modulus GB/T 9341 MPa 9500

Charpy notched impact strength, 23 °C GB/T 1043 kJ/m² 8.5

Charpy unnotched impact strength, 23 °C GB/T 1043 kJ/m² 56.0

Heat deflection temperature, 1.8 MPa GB/T 1634 °C 210

Flammability, 0.8 / 1.6 / 3.2 mm UL94 - V-0 / V-0 / V-0

Glow-wire flammability index, 0.8 / 1.6 / 3.2 mm GB/T 5169 °C 960 / 960 / 960

Glow-wire ignition temperature, 1.0 / 2.0 / 3.0 mm GB/T 5169 °C 775 / 800 / 825

Comparative tracking index GB/T 4207 V 600

Environmental protection RoHS 2.0 PPM Pass

Ash (glass fiber) GB/T 9345 % 30

Typical values from laboratory averages. Not for specification.

Typical processing conditions

Parameter Setting

Melt temperature 260-290 °C

Mold temperature 60-90 °C

Barrel temperature, rear zone 250-270 °C

Barrel temperature, center zone 260-290 °C

Barrel temperature, front zone 265-290 °C

Injection speed Medium to high

Back pressure 0.3-1.0 MPa

Drying condition 90-120 °C, 2-4 h

Processing temperature limit 300 °C

FAQ

Are you a manufacturer or a trading company?

We are a manufacturer. We run 8 compounding extrusion lines in Nanxun, Huzhou, with about 30,000 metric tons a year.

Which certifications do you hold?

ISO 9001, ISO 14001, ISO 45001 and IATF 16949.

Can you match a colour from my sample?

Yes. We use a Konica Minolta computer colour-matching system, and colour standards are set from customer samples.

How do I get a datasheet?

Use the datasheet request form. The datasheet is sent to you by email.

What are your minimum order quantity and lead time?

Both are confirmed with each quotation and depend on grade, colour and quantity.

Can you provide RoHS, REACH and SDS documents?

Yes, all three are available.

Send us your part requirements

Tell us the part, the material or grade you use today and the annual volume. An engineer replies with a recommended grade and a quotation.

Related grades

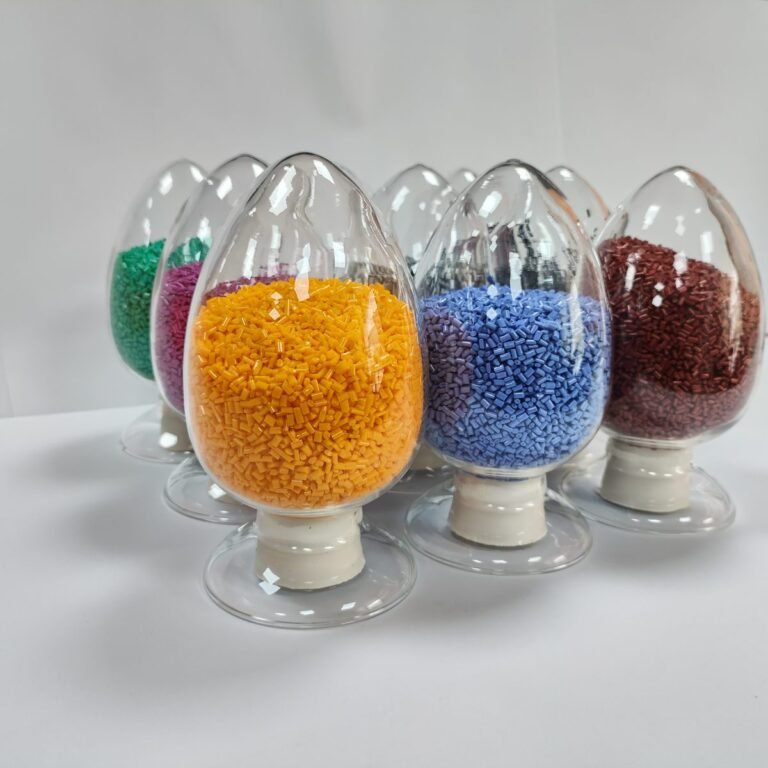

PA66 A90G15NC

PA66, 15% glass fiber, halogen-free flame retardant, natural

Tensile strength 98 MPa

HDT, 1.8 MPa 210 °C

UL 94 V-0 at 0.4, 0.8, 1.6 and 3.2 mm

View details

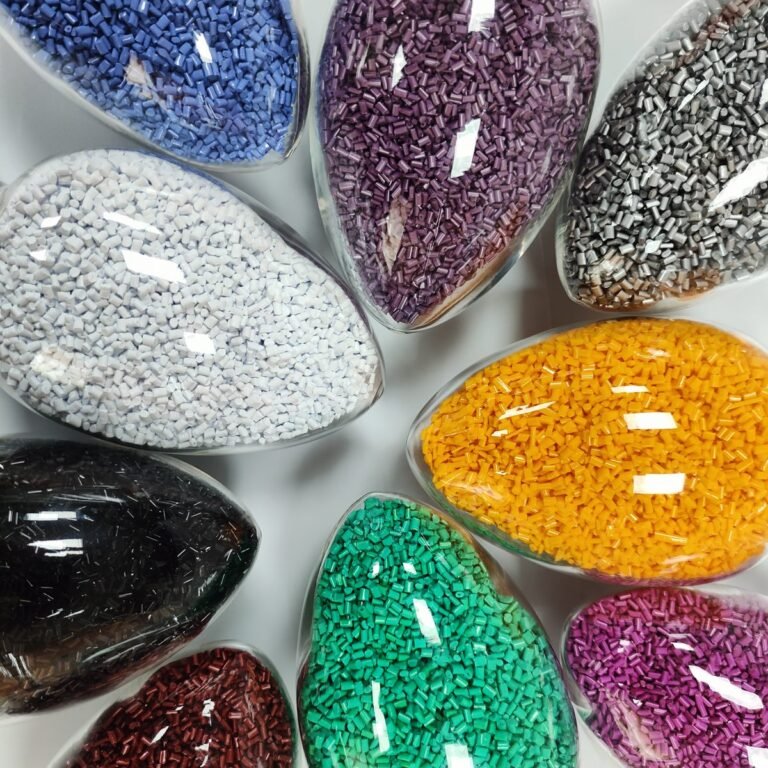

PA66 A80NC

PA66, halogen-free flame retardant, natural

Tensile strength 76.5 MPa

HDT, 1.8 MPa 82 °C

UL 94 V-0 at 0.8, 1.6 and 3.2 mm

View details

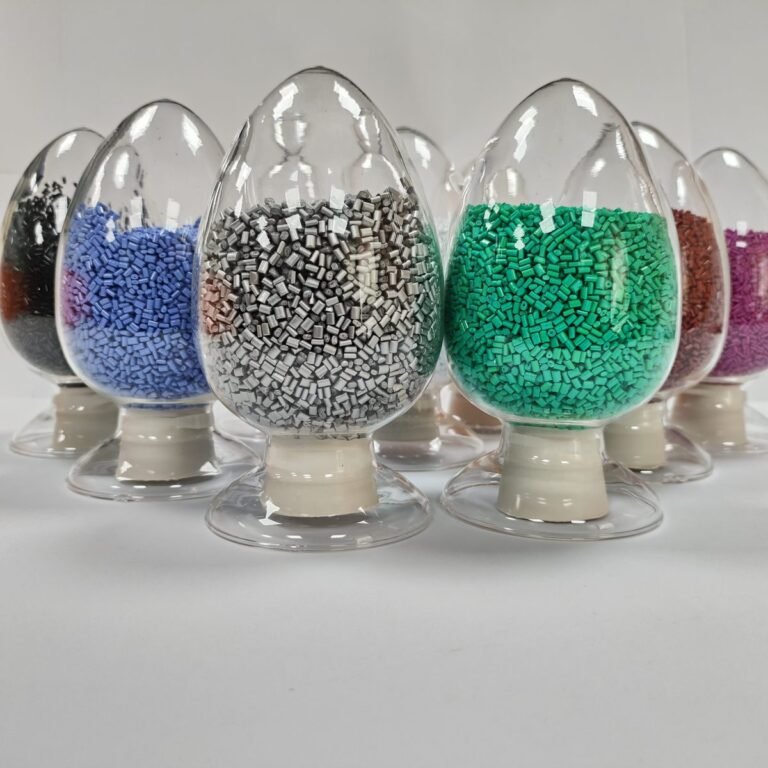

PA66 A2G30NC
